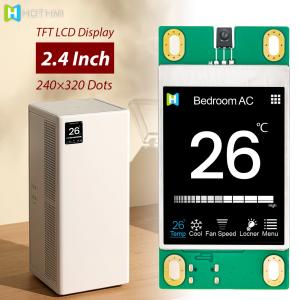

This 2.4-inch smart display module features a 240x320 resolution, a normally black panel, a 70% NTSC color gamut, and IPS viewing angles, ensuring clear viewing from any angle. This smart display offers flexible interfaces, supporting UART (TTL), RS232, and RS485, and is compatible with multiple communication protocols. It also offers convenient resource updates (USB/TF card/dedicated PCB) and supports 1Gbit/128Mbit resource storage, making it easy to handle complex interface and multimedia needs.
Users can also choose their own development platform. The TFT LCD display associated with this module, without a driver board, is the TFT-H024B25QVTST4N40, which supports common development platforms such as Arduino and C8051. Supports the capacitive touch version: TFT-H024A16QVIST4C10, and the resistive touch version: TFT-H024B26QVTST3R18.
All displays are industrial-grade, with stable power supply, a wide +5V±0.3V voltage range, and strong compatibility. Operating temperatures range from -20°C to +70°C and storage temperatures from -30°C to +80°C, they are suitable for industrial and harsh environments. They are suitable for industrial HMIs, smart device controls, medical equipment, outdoor displays, and more.
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | HTM-H024B25-UART-A01 | |
| Diagonal size | 2.4” | Inch |
| Resolution | 240x320 | Dot |
| Dimensions | 43.70x88.00x3.80 | mm |
| Active area (AA) | 36.72x48.96 | mm |
| LCD type | TFT LCD Display | mm |
| Display viewing angle | Full View | |
| Aspect ratio | 1:2 | |
| Backlight type | LED white | |
| TFT driver IC | EzUI | |
| Brightness | 350 | cd/m2 |
| Operating temperature | -20~70℃ | ℃ |
| Storage temperature | -30~70℃ | ℃ |
