Add to Cart

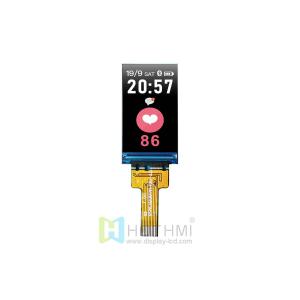

This 1.1 inch LCD has a 10-bit parallel interface that enables fast and efficient communication between Arduino and the display, ensuring smooth data transmission and real-time updates. This interface provides flexibility and compatibility with a variety of Arduino models. This TFT LCD display is powered by the ST7789H2 controller, which provides excellent performance and reliability. The controller optimizes the display's functionality, ensuring smooth operation and accurate rendering of images and graphics. Installation and removal are a breeze with a reliable and secure 10-pin FPC connection, allowing you to focus on your project without worrying about loose connections. Popular industries include IoT, industrial automation, consumer electronics, test and measurement instruments, handheld devices, and they are perfect for DIY or prototype projects due to their compatibility with Arduino. Our displays are all RoHS compliant and adhere to strict environmental and safety standards.
Product Highlights:
High-Definition Display
1.1-inch TFT LCD screen with a high resolution of 135 x 3RGB x 240, the display is crisp and colorful.
Full Viewing Angle
Supports full viewing angle (Free O’clock), ensuring clear visibility from any angle, suitable for various application scenarios.
Low Power Consumption Design
Operating voltage as low as 2.8V, I/O voltage of 1.8V, energy-efficient and extending device battery life.
Wide Temperature Range
Operating temperature range of -20℃ ~ 70℃, storage temperature of -30℃ ~ 80℃, adaptable to harsh environments with strong stability.
High Brightness Backlight
Equipped with white LED backlight, brightness up to 350cd/m², ensuring clear display even in bright environments.
SPI Interface
Supports SPI-4L interface, fast data transmission, strong compatibility, suitable for various embedded devices.
Anti-Image Retention Design
It is recommended to avoid displaying fixed patterns for a long time when using a normally black panel to prevent image retention. A screen saver is recommended.
Easy Integration
Provides detailed circuit diagrams and pin descriptions, facilitating quick integration into existing systems.
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | TFT-H011A1QCIST3N10 | |
| Diagonal size | 1.1” | Inch |
| Resolution | 135x480 | Dot |
| Dimensions | 17.6x31x1.65 | mm |
| Active area (AA) | 14.8635x24.9120 | mm |
| LCD type | TFT LCD Display | mm |
| Display viewing angle | Full View | |
| Aspect ratio | 1:2 | |
| Backlight type | LED white | |
| TFT driver IC | ST7789H2 | |
| Brightness | 350 | cd/m2 |
| Operating temperature | -20~70℃ | ℃ |
| Storage temperature | -30~80℃ | ℃ |
