1280x800 Pixels IPS TFT LVDS LCD Module Sunlight Readable Type

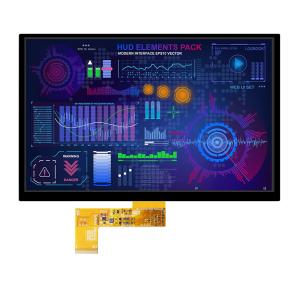

10.1inch 1280x800 IPS LVDS TFT Module Sunlight Readable/TFT-H101A10WXIFTKN40
TFT-H101A10WXIFTKN40 | 10.1" Sunlight Readable LCD | No Touch Screen | 1280X800 Pixels
This 1280X800 sunlight readable TFT is equipped with a powerful backlight for visibility in bright lighting conditions including direct sunlight. 24-bit LCD display with LVDS interface and full viewing angle. This LCD monitor is RoHS compliant. touchscreen.
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | TFT-H101A10WXIFTKN40 | |
| Diagonal size | 10.1” | Inch |
| Resolution | 1280x800 | Dot |
| Dimensions | 229.1x148.9x4.35 | mm |
| Active area (AA) | 216.96x135.6 | mm |
| LCD type | TFT LCD Display | mm |
| Display viewing angle | Full View | |
| Aspect ratio | 2:1 | |
| Backlight type | LED white | |
| TFT driver IC | EK79202B1 | |
| Brightness | 1000 | cd/m2 |
| Operating temperature | -20~70℃ | ℃ |
| Storage temperature | -30~85℃ | ℃ |
Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.
Enhance your user experience with capacitive or resistive touch screen technology. We’ll adjust the glass thickness or shape of the touch panel so it’s a perfect fit for your design.
Choose from a wide selection of interface options or talk to our experts to select the best one for your project. We can incorporate HI, USB, SPI, VGA and more into your display to achieve your design goals.
Equip your display with a custom cut cover glass to improve durability. Choose from a variety of cover glass thicknesses and get optical bonding to protect against moisture and debris.
