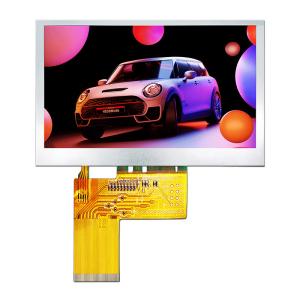

4.3-Inch Sunlight-Readable LVDS TFT Display/800x480 Pixels/TFT-H043A13SVIST6N40
Product parameters
Display Size - 4.3 inches
Perspective - Full Perspective
Backlight brightness - 600~1000cd/m2
Connection method PIN number - FPC-40PIN
Interface method - LVDS
Special Instructions - LVDS 3L/4L
Working temperature - -20~70℃
| parameter | Parameter Description | unit |
| TFT LCD | Standard TFT | |
| Diagonal inches | 4.3” | Inch |
| resolution | 800 × RGB × 480 (TFT) | dots |
| Dimensions | 105.50x67.15x3.05 | mm |
| Size (AA) area | 95.04x53.856 | mm |
| LCD specifications | TFT, white, transmissive | |
| Display perspective | 80/80/80/80 (IPS) | |
| aspect ratio | 1.1:2 | |
| Backlight specifications | LED, white | |
| TFT driver chip | ST7262 | |
| Touch glass type | None | |
| surface | Glossy | |
| Display brightness | 1000 | cd/㎡ |
| Operating temperature | -40~+80 | °C |
| Storage temperature | -40~+80 | °C |
