Product parameters
Product Type - TFT Landscape
Dimensions (mm) - 235.00x143.00x 6.95
Field of View Window Size (mm) - 10.1 inch
Effective size mm - 222.72x125.28
Product Application - Industrial Display/Household Appliances/Medical Equipment
Perspective - Full Perspective
Backlight type or brightness - 1200cd/m2
Connection method PIN number - 40PIN
Supply Voltage - 3.3V
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | TFT-H101A9WSIFTKC40 | |
| Diagonal size | 10.1” | Inch |
| Resolution | 1024x600 | Dot |
| Dimensions | 235.00X143X6.9 | mm |
| Active area (AA) | 222.72X125.28 | mm |
| LCD type | TFT LCD Display | mm |
| Display viewing angle | Full View | |
| Aspect ratio | ||
| Backlight type | LED white | |
| TFT driver IC | EK79001+EK73215(TFT) | |
| Brightness | 1000 | cd/m2 |
| Operating temperature | -20~70℃ | ℃ |
| Storage temperature | -30~80℃ | ℃ |
DESCRIPTION

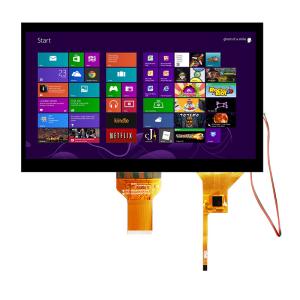

H101A9WSIFTKC40 is a high brightness 10.1 inch IPS TFT LCD display module with Projected Capacitive Touch Panel (CTP); made of resolution 1024x600 pixels. H101A9WSIFTKC40 model is built in with EK79001HN and EK73215BCGA driver ICs; it supports LVDS interface, contrast ratio 800:1 (typical value), brightness 1000 nits (typical value), aspect ratio 16:9, glare surface glass, normally black, transmissive LCD type. This 10.1" IPS TFT display has a wider viewing angle than TN TFT, it's view angle is Left:85 / Right:85 / Up:85 / Down:85 degree (typical value). This Capacitive Touch Panel is equipped with GT9271 IC on module, also available for I2C interface, multi-touch function, and compatible with Windows, Linux, Android and Mac Operating System.
The power supply voltage (VDD) of H101A9WSIFTKC40 is from 3.0V to 3.6V, typical value 3.3V. It can be operating at temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃. If customers require Resistive Touch Panel, please consider H101A9WSIFTKC40 model.
