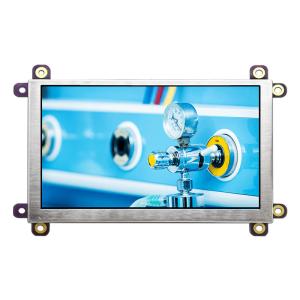

5.0 Inch 800x480 Dots For HI Signal TFT Display Modules/TFT-050T61SVHDVNSDC
Product parameters
Display Size - 5.0 inch
Product Application - Industrial Display
Perspective - Full View
Backlight type or brightness - 600cd/m2
Interface - HI,VGA
Working temperature - (-30~80℃)
Supply Voltage - 5.0V
Product introduction
- 5.0 inch standard display, 800×480 HD resolution
- 600 cd/m² high brightness, 30000 hours long life backlight. Special requirements can be replaced 50000 hours long life backlight
- Support backlight on/off separate control
- Support OSD control buttons to help users adjust the LCD screen to the best state for different application environments,
OSD menu can be switched in Chinese and English.
- Support VGA and HI 1.4a signal input (choose one when using, cannot
identify at the same time)
- Supports multi-point USB interface drive-free capacitive touch screen
- Support panel embedded installation, only need 4 screws to fix the PCB,
easy installation and maintenance
-Compatible with mainstream operating systems and embedded operating systems such as DOS/Windows98/2000/XP/win7/win8/win10/Embedded/Linux.
Module parameters
| Item | Standard Value | Unit | |
| Interface | HI 1.4a / VGA | - | |
| Power Input | DC 5V/1A 以上 | - | |
|
Module brightness | Without TP | 600 |
cd/m2 |
| Product weight | Without TP | 90 + 5% | g |
LCD parameters
| Item | Standard Value | Unit |
| Display Size | 5.0 | Inch |
| Number of Pixels | 800(H)*3(RGB)* 480(V) | dots |
| Active Area | 95.04(H)* 53.86(V) | mm |
| Outline Dimension | 140.00(H) * 95.00(V) * 21.10(D) <Without TP> | mm |
| Contrast Ratio | 1000:1 | - |
| Response Time | 30 (Tr + Tf) | msec |
| Viewing Direction | Full O'clock | - |
| Maximum color | 16.7 M | Color |
| USB Touch Panel | Without TP | - |
| Operation Temperature | -20 ～ 70 | ℃ |
| Storage Temperature | -30 ～ 80 | ℃ |
