China 4 Inch Square TFT LCD Display 480x480 Resolution With ST7701S wholesale

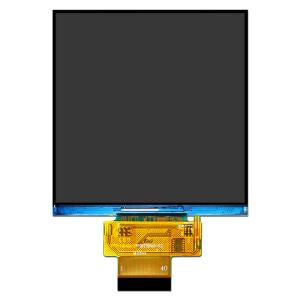

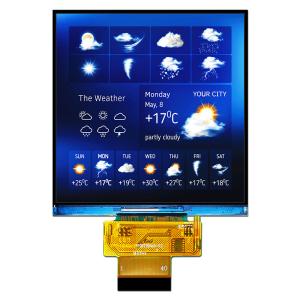

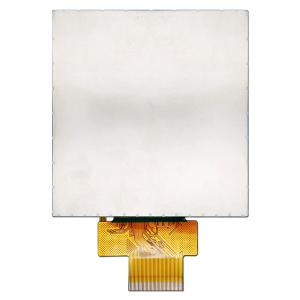

4 Inch Square TFT LCD Display 480x480 Resolution With ST7701S

Name: 4 Inch Square TFT LCD Display 480x480 Resolution With ST7701S
Brand: HOTHMI
Price: 1 USD

Ask Latest Price

Video Channel

Brand Name :HOTHMI

Model Number :TFT-H040A1PVIST5N40

Place of Origin :dongguan,China

MOQ :2

Payment Terms :L/C, D/A, T/T, D/P, Western Union, MoneyGram

Supply Ability :99999

Delivery Time :25 days

Product Type :Square TFT

Display content :480x480 dots

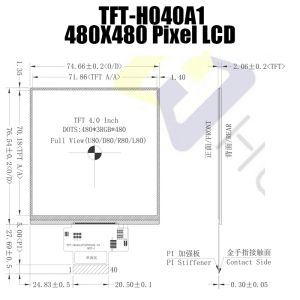

Dimensions (mm) :74.66(H) * 76.54(V) * 2.06(D)

Field of view window size :4 inch

Product application :86 boxes, smart panel

Backlight brightness :500cd/m2

Contact Now

Add to Cart

View Product Description

4 Inch 480x480 Dots Square TFT LCD Display SPI RGB ST7701S/TFT-H040A1PVIST5N40

Product parameters
Display Size(mm) - 4 inch
Effective Dimensions mm - 71.86(H) x 70.18(V)
Angle - Full Angle
Connection method PIN number - 40PIN
Interface - 18 bit RGB+SPI
Working temperature - -20~70℃
Supply voltage - 2.8V
Driver chip model - ST7701S

General Feature

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H040A1PVIST5N40
Diagonal size	4.0”	Inch
Resolution	480x480	Dot
Dimensions	74.66x76.54x2.06	mm
Active area (AA)	71.86x70.18	mm
LCD type	TFT LCD Display	mm
Display viewing angle	Full View(U80/D80/R80/L80)
Aspect ratio	1:1
Backlight type	LED white
TFT driver IC	ST7701S
Brightness	500	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
