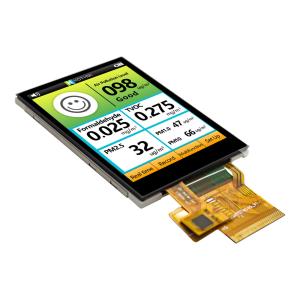

2.8 inch Portrait 240x320 MCU RGB SPI TFT LCD Module with CTP/TFT-H028C2QVTST4C45
Product parameters
Display Size - 2.8"
Viewing Angle - 12H
Backlight brightness - 280cd/m2
Connection method PIN number - FPC-45PIN
Interface - SPI, RGB, MCU
Special Instructions - Can be equipped with CTP
Operating temperature - (-20~70℃)
Supply Voltage - 3.3V
Driver chip model - ST7789V
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | TFT-H028C2QVTST4C45 | |
| Diagonal size | 2.8” | Inch |
| Resolution | 240X320 | Dot |
| Dimensions | 50.0*69.2*3.7 | mm |
| Active area (AA) | 43.2*57.6 | mm |
| LCD type | TFT LCD Display | mm |
| Display viewing angle | 12 O'Clock(U50/D20/L45/R45) | |
| Aspect ratio | 3:4 | |
| Backlight type | LED white | |
| TFT driver IC | ST7789V | |
| Brightness | 350 | cd/m2 |
| Operating temperature | -30~70℃ | ℃ |
| Storage temperature | -30~80℃ | ℃ |
The TFT-H028C2QVTST2C45 is a 2.8-inch wide temperature IPS TFT-LCD display with projected capacitive touchscreen with a resolution of 240x320 pixels. The module has built-in ST7789V driver IC and supports SPI/RGB/MCU fully compatible interface. TFT-H028C2QVTST2C45 adopts IPS panel, which has the advantage of wider viewing angle, left: 80 / right: 80 / top: 80 / bottom: 80 degrees (typ.), contrast ratio 800:1 (typ.), brightness 280 nits (typ. value), glare panel, 16:9 aspect ratio. The touch screen has built-in FT6336U IC, which supports I2C interface and multi-touch function. The H028C2Q model has a projected capacitive touch panel (PCAP) but no touch panel option (TFT-H028C2QVTST3N45). The supply voltage (VCC) of the TFT-H028C2QVTST2C45 is 3.0V to 3.6V, with a typical value of 3.3V. It can work at temperatures from -20°C to +70°C and storage temperatures from -30°C to +80°C.
