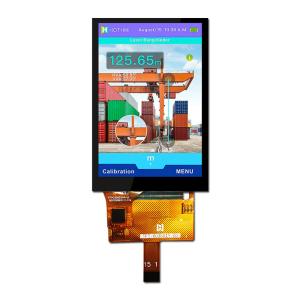

3.5 Inch 320x480 SPI IPS TFT LCD Module With CTP/Sunlight Readable/TFT-H035A11HVTST5C15
Product parameters
Display Size - 3.5"
Product Application - Outdoor Instrumentation
Perspective - Full Perspective
Backlight type or brightness - 500cd/m2
Connection method PIN number - 15PIN
Interface - SPI-4L
Special Instructions - Capacitive Touch with CTP
Working temperature - (-20~70℃)
Supply Voltage - 3.3V
Product Description
Product Description The TFT-H035A11HVTST5C15 is a 3.5-inch wide temperature IPS TFT-LCD monitor with a projected capacitive touch screen with a resolution of 320X480 pixels. The module has built-in ST7796 driver IC and supports SPI interface. TFT-H035A11HVTST5C15 adopts IPS panel, which has the advantage of wider viewing angle, left: 80/right: 80/up: 80/down: 80 degrees (typical value), contrast ratio 800:1 (typical value), brightness 400 nits (typical value) value), glare panel, 1:1.5 aspect ratio. Support I2C interface and single touch function. The H035A11 model has a projected capacitive touch panel (PCAP), and the power supply voltage (VCC) of the TFT-H035A11HVTST5C15 is 3.3V. It can operate at temperatures from -20°C to +70°C and storage temperatures from -30°C to +80°C.
