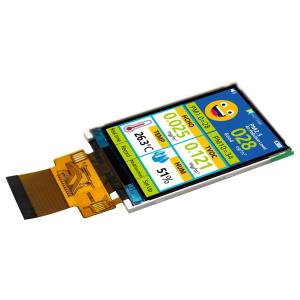

2.4-inch TFT color display /240*320 resolution /Full-viewing angle IPS process/MCU interface compatible with SPI/ST7789V/Arduino/C8051/STM32 /Wide-temperature display
TFT-H024A1QVIST8N40 is a 2.4-inch wide-temperature IPS TFT-LCD display. This product does not have a touch function, but can add a touch function and a cover plate, with a resolution of 240x320 pixels. The module has a built-in ST7789V driver IC and supports the MCU interface. TFT-H024A1QVIST8N40 uses an IPS panel, which has the advantage of a wider viewing angle, left: 80/right: 80/up: 80/down: 80 degrees (typical), contrast 800:1 (typical), brightness 800 nits (typical) value), glare panel, 16:9 aspect ratio. The touch screen has a built-in FT6236U IC, supports I2C interface and multi-touch function. The related H024A1 model has a projected capacitive touch panel (PCAP) but no touch panel option (TFT-H024A1QVIST8N40). The supply voltage (VCC) of the TFT-H024A1QVIST8N40 is 3.0V to 3.6V, with a typical value of 3.3V. It can operate in temperatures from -30°C to +80°C, with a storage temperature of -40°C to +80°C.
| ITEM | PARAMETER DESCRIPTION | UNIT |
| TFT series | TFT-H024A1QVIST8N40 | |
| Diagonal size | 2.4” | Inch |
| Resolution | 240X320 | Dot |
| Dimensions | 42.52x59.86 | mm |
| Active area (AA) | 36.72x48.96 | mm |
| LCD type | TFTWide temperature and full viewing angle display | mm |
| Display viewing angle | IPS | |
| Aspect ratio | 3:4 | |
| Backlight type | LED white | |
| TFT driver IC | ST7789V | |
| Brightness | 800 | cd/m2 |
| Operating temperature | -30~80℃ | ℃ |
| Storage temperature | -40~80℃ | ℃ |
